TTS Marine ASA - KNUCKLE BOOM CRANE SWL 6T at 17 m

orCall +44-7816466923

Description

TTS Marine ASA - KNUCKLE BOOM CRANE

Crane Data

Quantity : 2 units

Location : C-Deck

Crane Type: GPK 260-6-17, Ele. Hydraulic lifting knuckle jib crane

Working radius : Max. = 17 m, min. = 3.3 m

Lifting capacity: SWL 6T at 17 m,

Service & provision handling crane Lifting speed with SWL : 0 - 30 m/min

Lifting speed w/ light load: 0 - 30 m/min.

Lifting height/Single fall : 30 m

Slew sector : 360° unlimited

List/ trim : 5°/ 2°(provision),

Luffing time, up : 70 sec

Slewing speed  : 0 - 1 rpm

Weight of crane : 12.5 Tons

Working radius : Max = 17 m, min. = 3.3 m

Lifting capacity : SWL 1T at 17 m

Lifting speed : 0 - 48 m/min

El. Motor Data

El. Motor type: M2QA 200 L4B

Enclosure: IP55

Insulation class : F Power rating cont. (S1) : 40.3

Power rating (S6-40%): 60

Voltage : 440V/60HZ 3P

Heater element : 1P 25W

El: motor RPM : 1760RPM

Rotation seen fr. fan end : CLOCKWISE

Start current (DOL) : 397A

Full load current : 95A

Classification

Certificate : Det Norske Veritas (DNV)

Certificate Title : Survey Report of Crane’s Pedestal

Certificate No : SHA-09-2004.1; SHA-09-2004.2

Order No: 371D1350

Serial No: 21452; 21453

Date : Shanghai, 2009-11-20

Certificate : TTS Marine (Shanghai) Co. Ltd

Certificate Title : Declaration of Conformity

Ref. no : MC-SHA-TD-06-e

TTS Technical Spec. No : 12866-3a-1 Serial No    : 21453, 21452

Date     : 2010-7-10

Quantity: 2 units

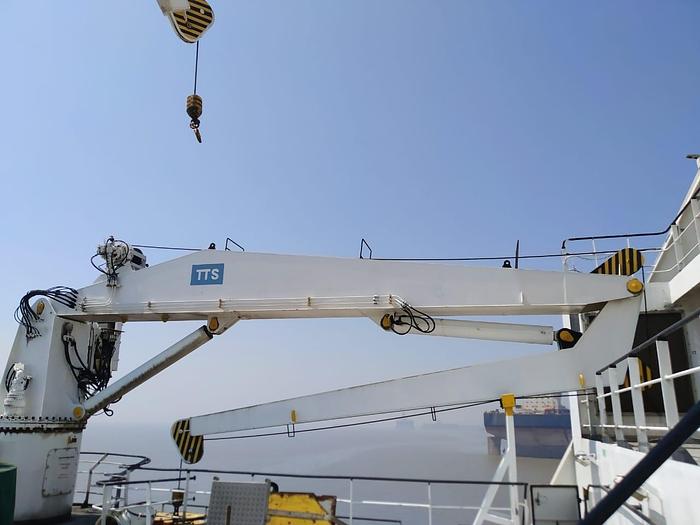

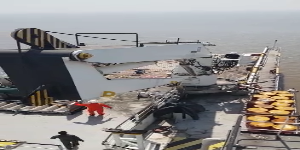

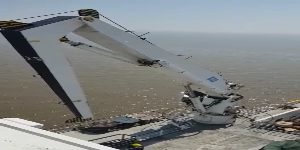

Attached here are the pictures.

Tug AHTS : Go Phoenix / Built 2009 - Indonesia / IMO 9495208

Located in India.


Specifications

ManufacturerTTS
ConditionUsed
MakeTTS Marine ASA - KNUCKLE BOOM CRANE
Lifting capacitySWL 6T at 17 m
Weight of crane12.5 Tons
Voltage440V/60HZ 3P
Quantity2 units
