MAN STX 18V32/40 HFO / Diesel Unused generator set.
MAN STX 18V32/40 HFO / Diesel Unused generator set.
Description

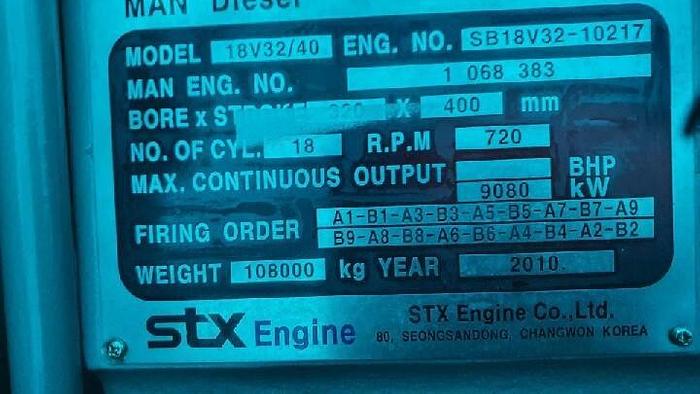

Engine model STX-MAN 18V32/40
Installed capacity 9000 kw
Quantity 1 unit
Unit capacity 9,000 kw x 720 RPM x 13.8KV x 60HZ
Fuel HFO /Diesel
Manufacturing year 2010-2011
Test & Commissioning May 2011-Sept 2011
Commercial operation : zero hours
Continuous operation : Zero hours
Stand-by operation : Zero hours
Technical data
- Cylinder bore : 320 mm
- Piston stroke : 400 mm
- Engine Speed : 720 RPM
- Mean effective pressure : 25.90 Bar
- Power per cylinder : 504.4 KWm/cyl
- Power of the engine : 9,080 KWm
- Power of the genset : 8,826 KWe
- Power factor cos phi(lagging) : 0.85
- Voltage : 13.8 Kv
Dimension and weight of the 18V32/40 genset
- Height(H) : 5,240 mm
- Length(C) : 12,750 mm
- Width(W) : 3,500 mm
- Weight(dry) : 139,000 kg
Specifications
| Manufacturer | MAN STX |
| Model | 18V32/40 |
| Year | 2010 |
| Condition | New |
| Stock Number | G045 |
| Make | MAN STX |
| Model | 18V32/40 |
| Mfg year | 2010 |
| Working hours | 0 |
| RPM | 720 |
| Power | 9000 KW |
| Fuel | HFO / Diesel |
| Voltage | 13.8 Kv |
| HZ | 60 |
