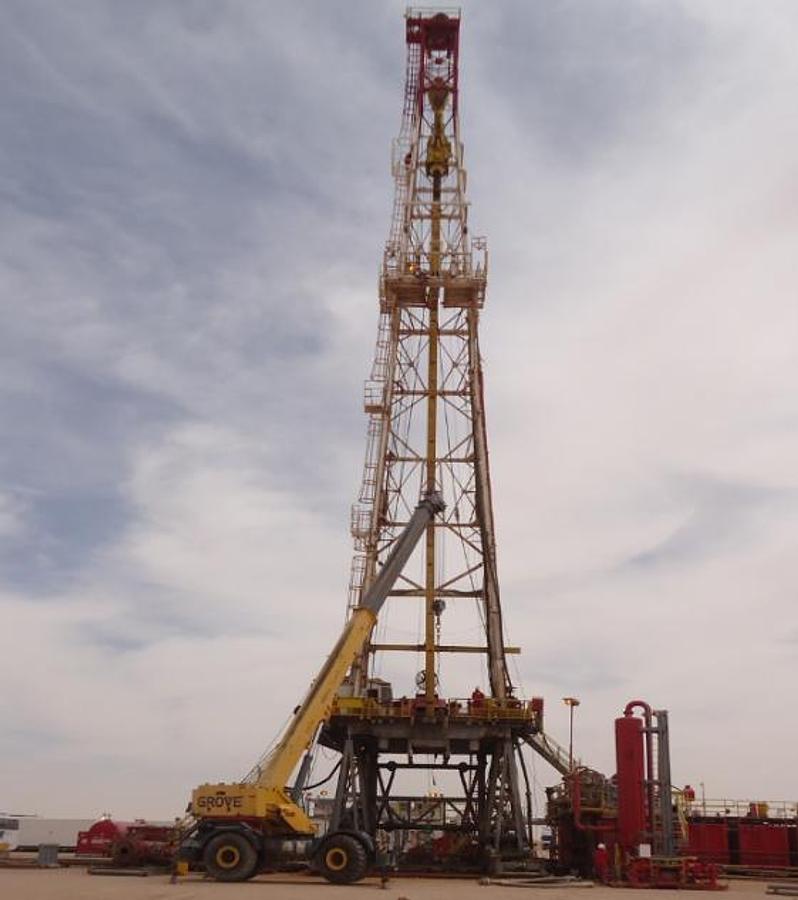

MH Wirth 1500 HP Land drilling rig.

1500 HP Land Drilling Rig

Originally built in 1973 and upgraded in 2004

Mast / Derrick and sub built in 2017

Load rating: 707,000 lbs

Dept Rating: 16.000 ft

Load count: 125 excluding offices and camp.

Mast: Cantilevered

Make: Pyramid

Height: 143 ft

Static Hook load: 700,000 lbs

Drilling line size: 1-3/8"

Drawworks: Gardener Denver

Model: 1100E

Input power: 1150 hp

Horsepower rating: 1500 hp

Top drive: Varco TDS-11SA

Load rating: 500 T

Mud Pumps: Gardner Denver PZ11

Power Generation: Caterpillar D398 800 HP

Well Control: Hydril 5000 PSI

Complete details on the attached file.

Contact us at info@heeyas.co.uk

#rig #oil #drilling #energy #power #gas
