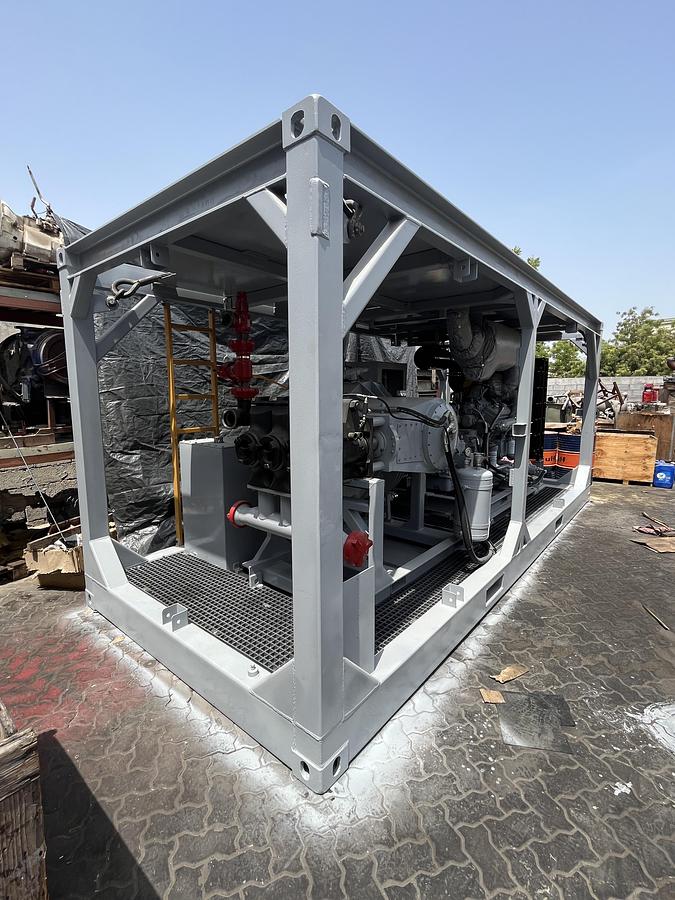

450HP HD-500 TRIPLEX PUMP UNIT

450HP HD-500 TRIPLEX PUMP UNIT

Flow rates up to 7.5 bpm / 315 gpm / 1,200 lpm

High-pressure pump applications up to 13,500 psi

Field-proven 450 hp Detroit Diesel 8V-92TA engine

Lifting frame certified to International Convention for Safe Containers (CSC) & DNV 2.7-1 / BS EN 12079

Operation / Service

• General pumping

• Fracturing simulation

• High pressure well kill

• Fracturing/stimulation

Safety / Environmental

Shutdown system includes Chalwyn Overspeed Valve,

Emergency Stop, Fuel Stop, pump overpressure shutdown, fail-safe system and Pressure Relief Valves.

Lifting frame has a drip tray with drain points to catch spills.

Certification

Lifting frame designed to international code ‘CSC’ & offshore containers specification DNV 2.7-1 / BS EN 12079 allowing for frames to be stacked during international shipping & sling lift during vessel to platform lifting operations

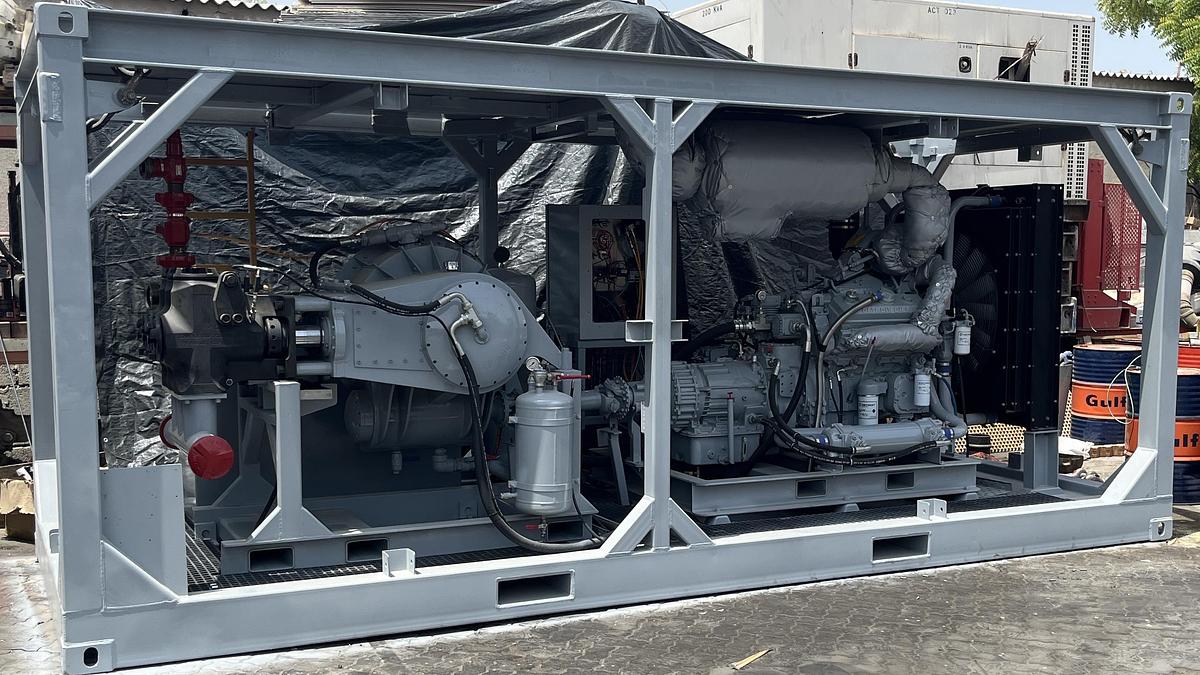

Drivetrain

Detroit Diesel 8V-92TA Zone 2 rated engine (450 bhp @ 2100 rpm) with Allison HT750DRD transmission, plus an 8-hour fuel supply (integrated carbon steel tank).

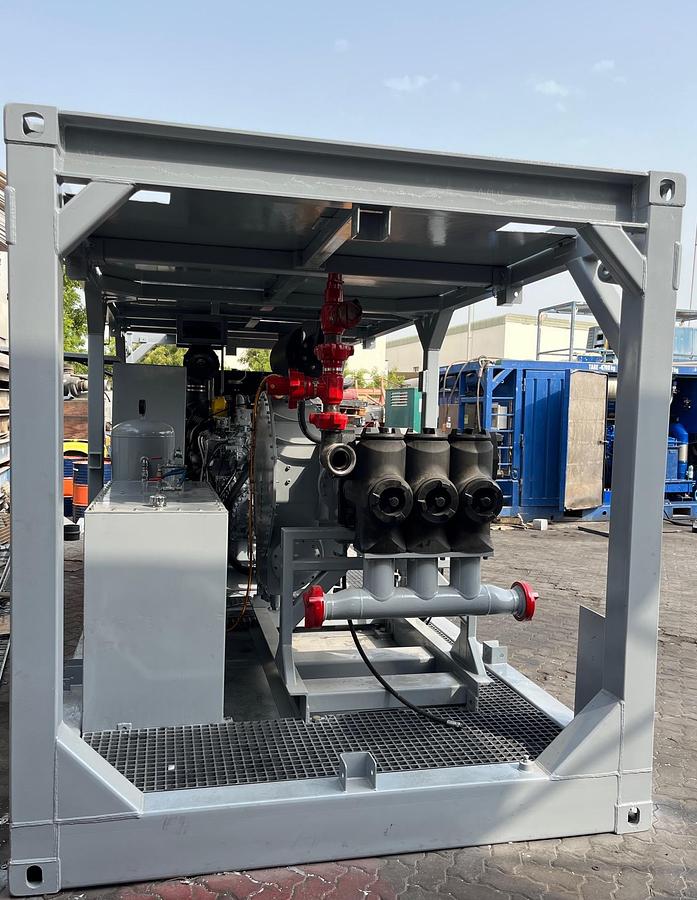

Triplex Pump

HD-500 positive displacement triplex pump c/w 4” plungers with a maximum working pressure of 15,000 psi mounted on subframe with forklift pockets allowing easy removal for maintenance.

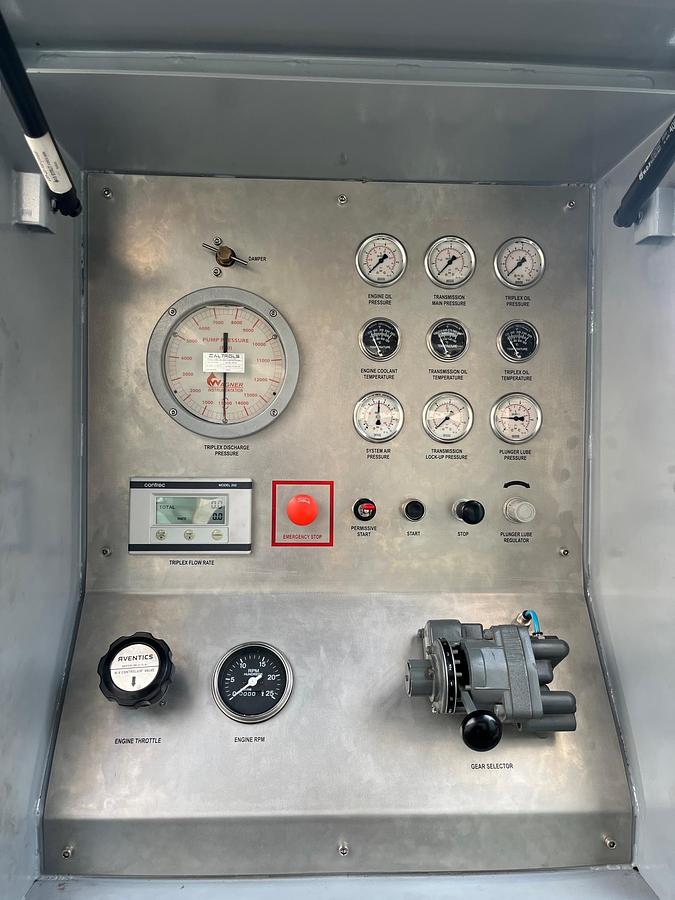

Control Panel

Engraved stainless-steel control panel comprising central control of engine and transmission, display of flow rate, pressure and temperature gauges, and emergency stop valve

Weights

Max Gross: 15,000 kg

Max Payload: 12,000 kg

Max Tare Mass: 3,000 kg

Stacking Mass: 194,000 kg

Dimensions

Length: 6,058 mm

Width: 2,438 mm

Height: 2,591 mm

Design Temperature

At sea level: 0˚C to +50˚C

Fuel consumption

0.5 gpm at full load.

Fuel tank capacity suitable for 8 hours of operation at full load.
