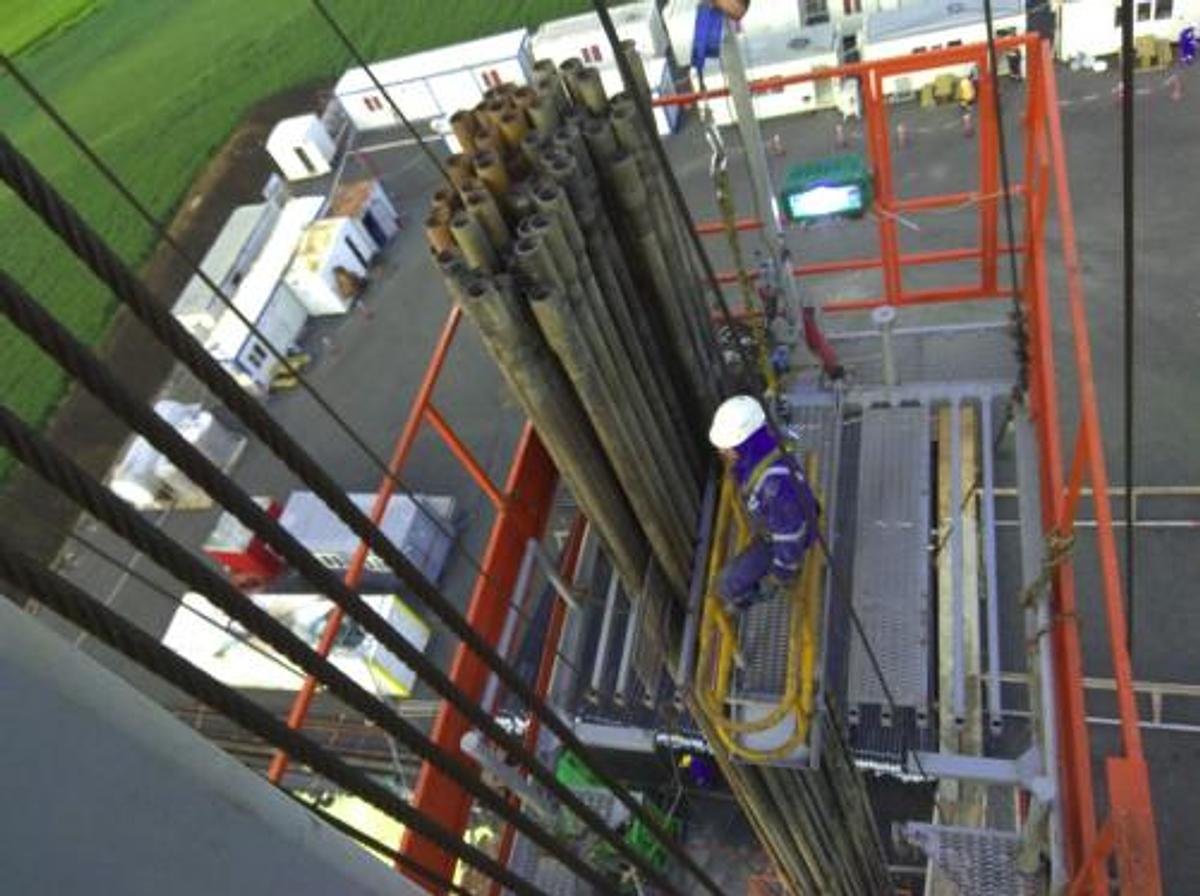

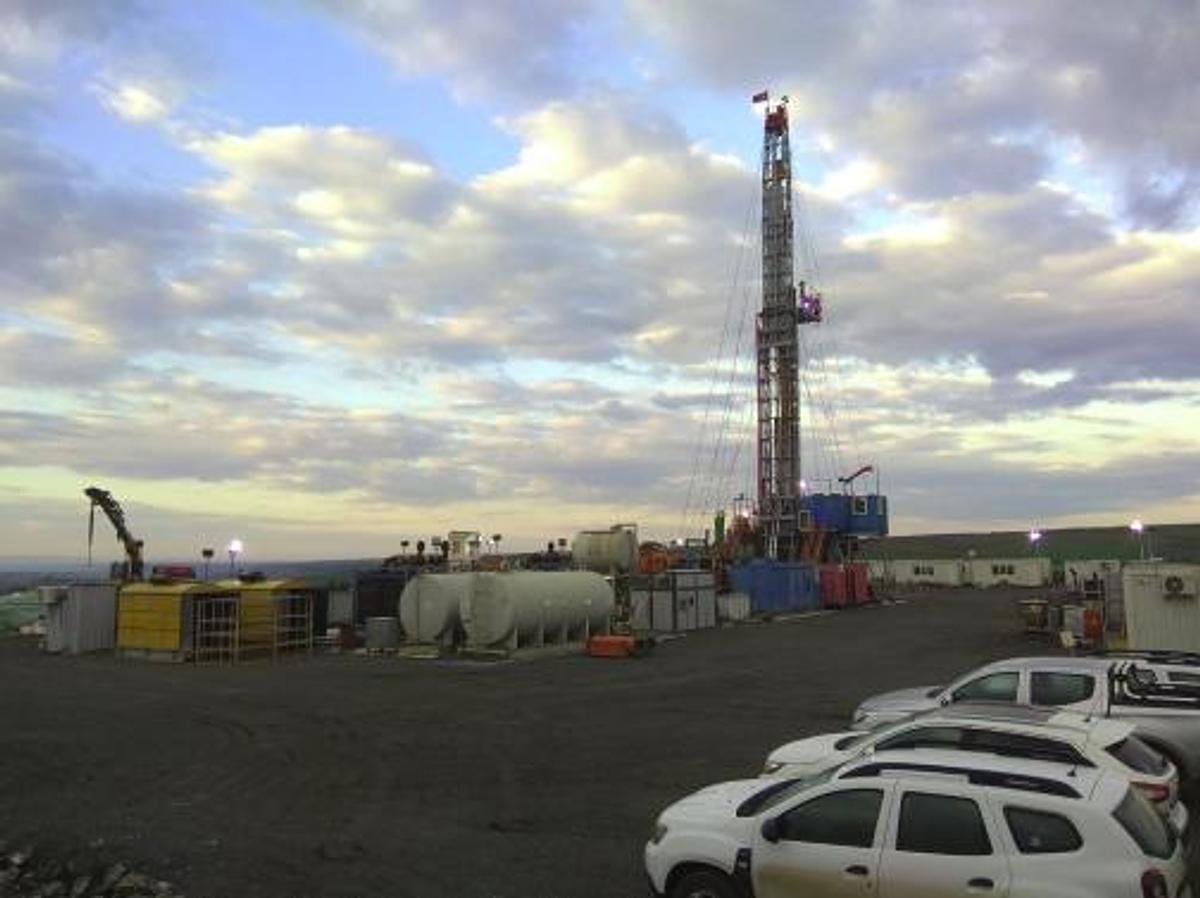

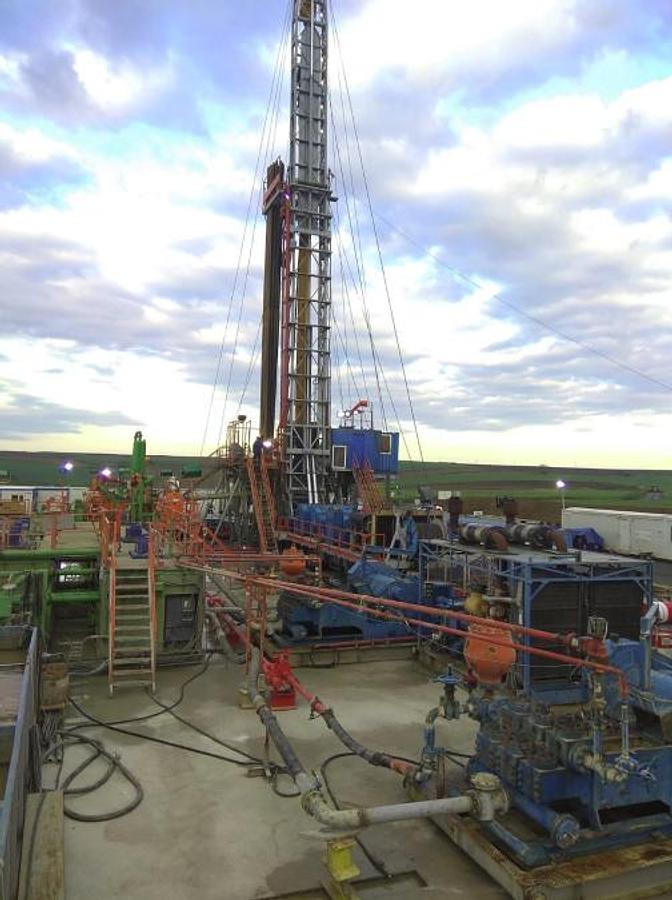

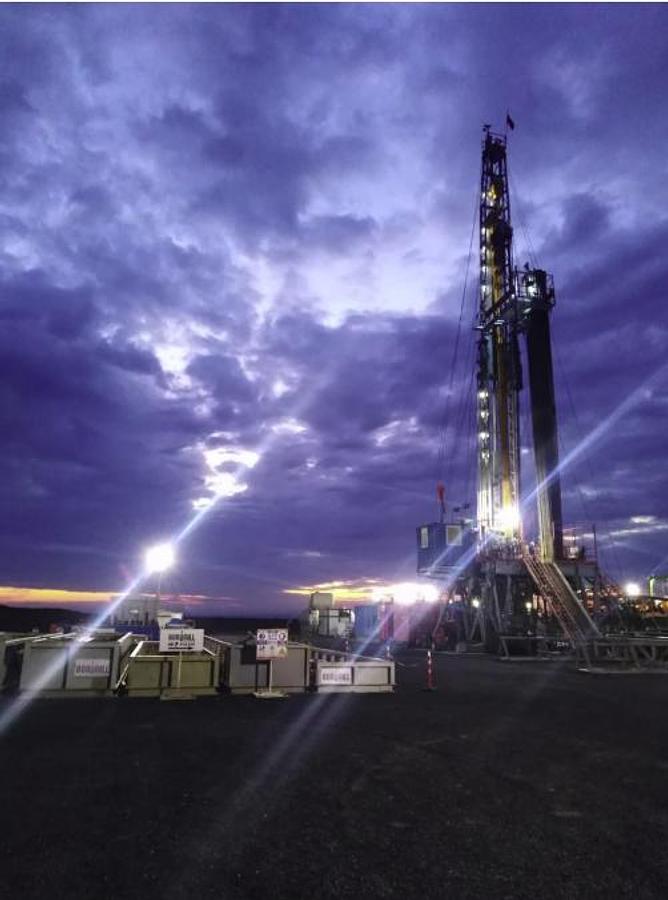

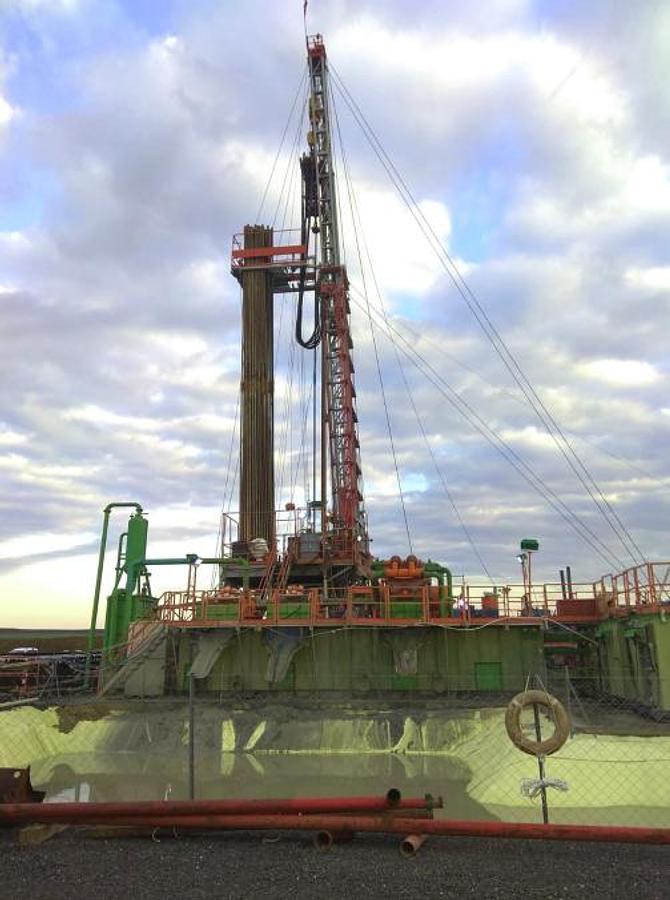

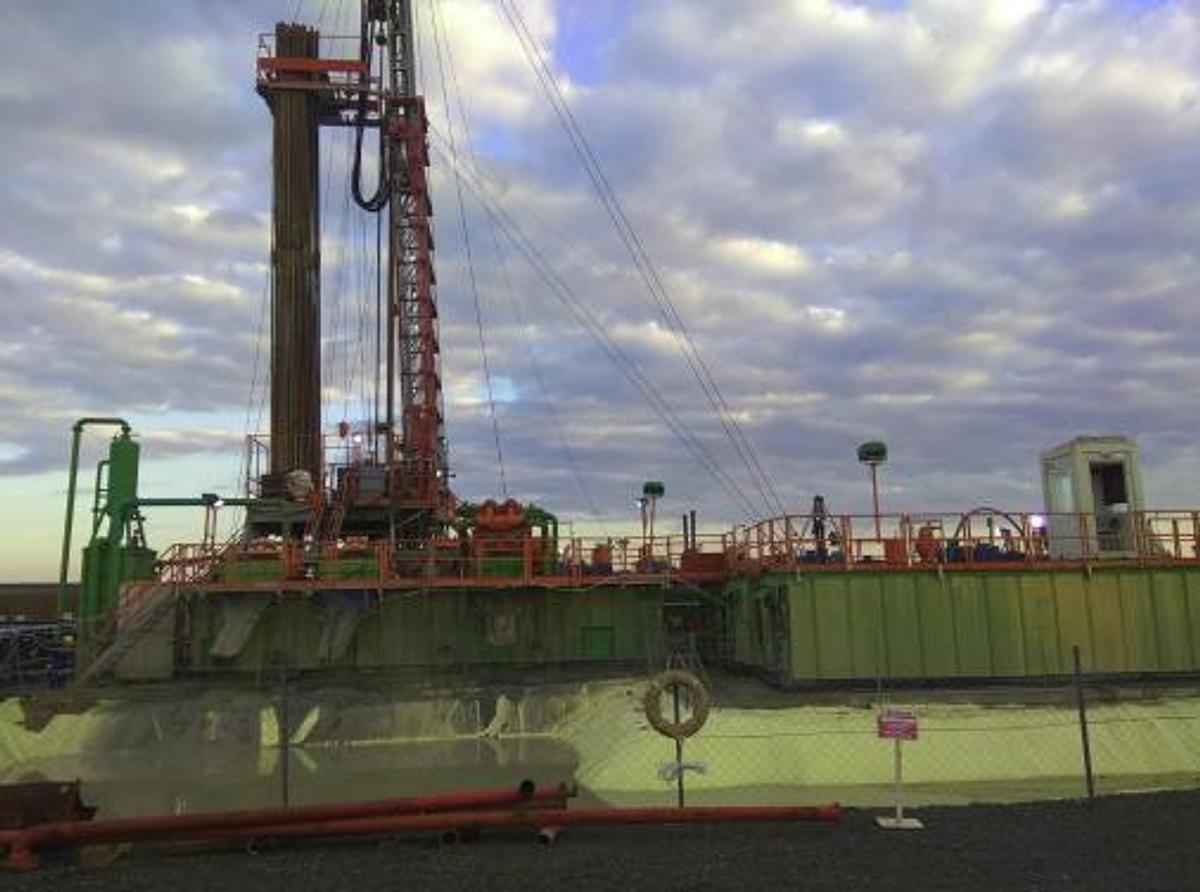

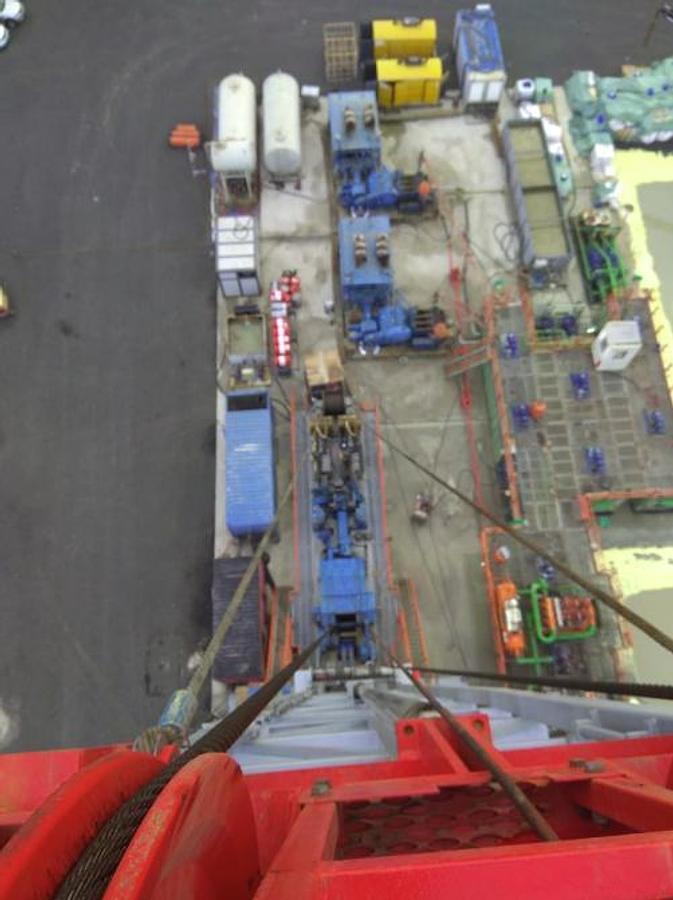

MR-8000 (1080 HP) MOBILE DRILLING & WORKOVER RIG

Drillmec MR-8000 (1080 HP) Mobile Drilling & Workover Rig

Model: Drillmec MR-8000 Semitrailer

Rig No: BD-7

Serial No: 12226

Year built: 2008, Italy

Recertified: November 2024

Location: Turkiye

Availability: Q4 2026 / Q1 2027

MAST & HOISTING

Static hook load: 200 MT

Setback capacity: 113 MT

Mast: Drillmec S/N 12227, four leg, open face, two section telescopic

Clear height from ground: 36 m

Clear height from drill floor: 31 m

Draw works: Drillmec conventional, 1080 HP input

Main drum: 26" x 42-1/2", grooved for 1-1/8" line

Drill line: 1-1/8" 6 x 19 IWRC EIPS

Brake: band type

Auxiliary brake: Parmac V80, 5000 HP

Crown-O-Matic: Drillmec, fitted

Block & hook: American Block 226 MT

SUBSTRUCTURE & ROTARY

Drill floor height: 5.2 m

Clear height under rotary beam: 4.2 m

Drill floor dimensions: 7 m x 5 m

Rotary table: Drillmec, 27-1/2" opening

Max static load on table: 320 MT

Rotary clutch: 20 CB 500

Rotary air brake: 16 CB 500

POWER PACK & GENERATION

Engines: Caterpillar C15 ACERT x 2, 540 HP @ 2100 RPM

Transmission: Allison S5610H automatic x 2

Torque converter: TC680

Speeds: 5 forward + 1 reverse

Generators: Caterpillar C15 x 2, 400 ekW, 50 Hz, 1500 RPM

MCC & switchgear: 1 set, 400 V mud / 220 V lighting

Air compressor: Ingersoll Rand T30 2475, 11 bar

TOP DRIVE

Make: JH Petroleum B4053

Manufactured: April 2020

Refurbished: May 2025

Motor: 315 kW, 1200 RPM rated, 2400 RPM max

Circulating pressure: 5000 PSI / 35 MPa

IBOP: upper & lower remote, NC46 box & pin

VFD: ABB ACS880-07/07C, new & unused, May 2025

PLC: Siemens S7-1500

VFD genset: Caterpillar C15

Top drive rails: 4 ea

MUD PUMPS

Pumps: Drillmec 9T1000 x 2, horizontal API 7K

Rated input: 1000 HP each

Valve pot size: 7

Engines: Caterpillar C18 ACERT x 4, 600 HP @ 1200 RPM

Transmission: Drillmec TC955 torque converter

Pulsation dampeners: Hydril K20-5000 x 2

Mounting: oilfield skid

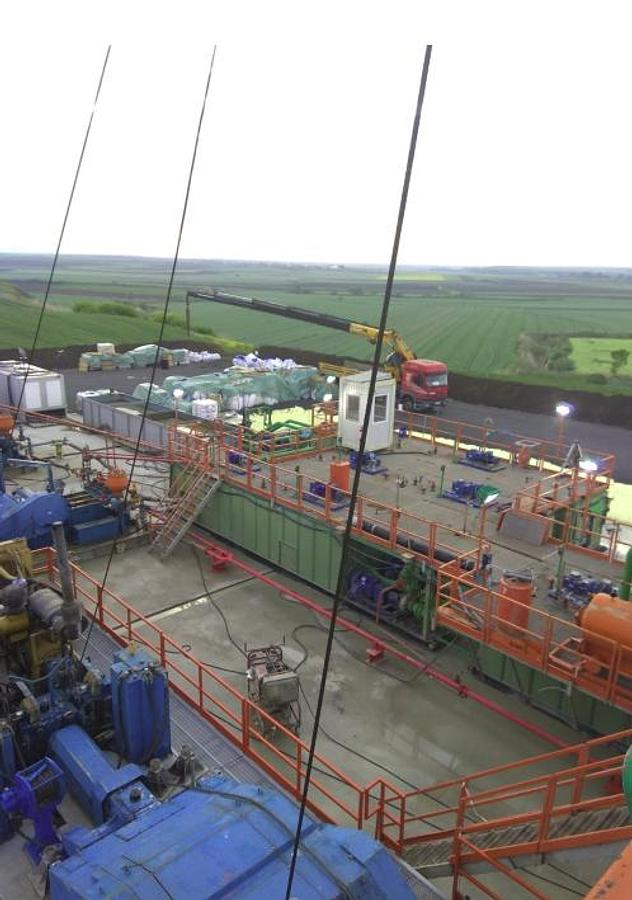

MUD SYSTEM

Total capacity: 212 m3

Shale shaker tank: 60 m3

Mixing tank: 60 m3

Intermediate tank: 46 m3

Suction tank: 46 m3

Water tank: 40 m3

Trip tank: 6 m3 c/w centrifugal pump

Hoppers: 2 ea, 6"

Centrifugal pumps: 6 ea, 75 kW

Mud agitators: 10 ea, 15 kW

Electrics: 400 V / 50 Hz ex-proof throughout

SOLIDS CONTROL

Shale shakers: Swaco Mongoose PT x 2

Mud cleaner: Swaco 2-12/6T4 Mongoose PT

Degasser: Swaco vacuum, horizontal type

Poor boy degasser: 1 ea, trip tank mounted

RIG FLOOR

Rotary tongs: 2 ea, 3-1/2" to 14-3/8"

Elevator links: 1 set, 2-1/4" x 108", 250 t

Hydraulic winch: 3000 kg drill floor / 5000 kg semitrailer

Hydraulic elevation BOP: Drillmec, 20 t lifting

Dead line anchor: 22.6 MT, E80 tension sensor

BOP skid & trolley: 1 ea

Stand pipe manifold: 1 ea

Dog house: Drillmec built, c/w support

Monkey board: 1 ea

Vee door: 1 ea

INSTRUMENTATION

Drilling console & driller's panel

Weight indicator: dead line

Mud pump pressure gauges: 0-5000 PSI

Mud pump stroke indicators: 2 ea

Rotary torque indicator

Tong torque indicator

Rotary speed tachometer: for top drive

AUXILIARY

Fuel tank: 60 m3 + 5 m3

Water cooling system: 5 m3 tank, 30 m3/h pump

Rig lighting system: 1 set

Mud tank lighting system: 1 set

Walkways: 8 mud tank, 12 carrier

Handrails: 39 ea

Stairs: 5 ea

Hoses: rotary x 1, mud pump discharge x 2

Please refer to the attached PDF file for photos and complete details.

Contact us at info@heeyas.co.uk
