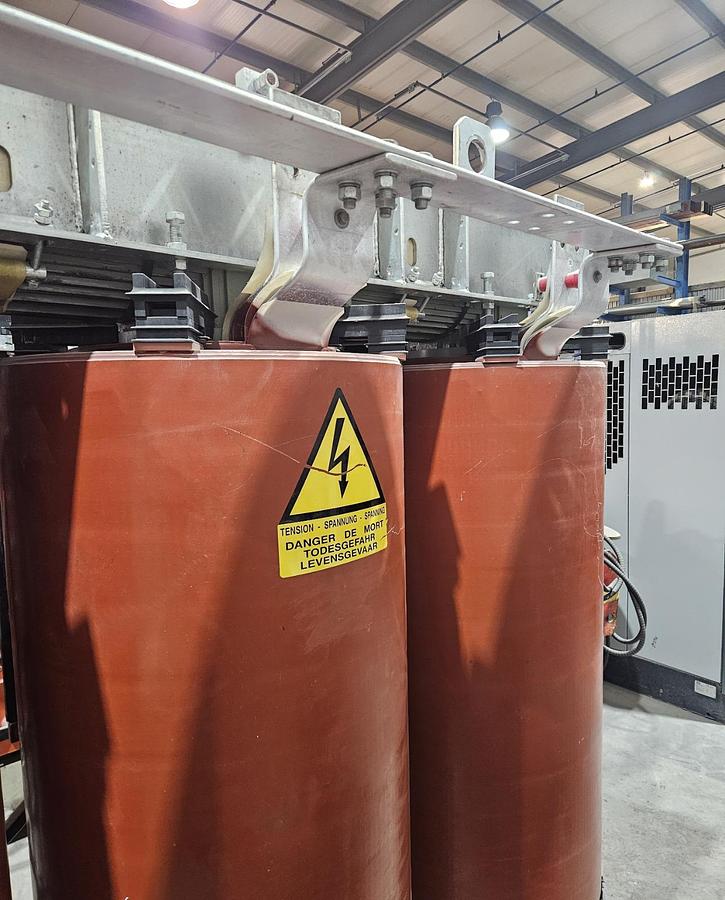

S.E.A. S.p.A. (Tezze di Arzignano, Vicenza, Italy) dry-type transformer with cast-resin windings.

S.E.A. S.p.A. Dry-Type Transformer

Manufacturer: S.E.A. S.p.A., Tezze di Arzignano (VI), Italy

Transformer type: Dry-type, cast-resin / encapsulated windings

Cooling: AN/AF

LV Voltage: 690 V

LV Current: 2,092 A / 2,619 A

Temperature Class: F

LV insulation: AC 3 kV (as indicated on nameplate)

Rated capacity: Approx. 2,500 kVA AN / 3,125 kVA AF

The transformer features cast/encapsulated windings and forced-air cooling capability (AN/AF), making it suitable for demanding industrial and electrical distribution applications.

The unit is rated for 690 V low-voltage operation, with LV currents of approximately 2,092 A under natural-air cooling and 2,619 A with forced-air cooling.
