Kawasaki RCMX 12.65 MW Steam Turbine Generator Set – 2015

Manufacturer: Kawasaki Heavy Industries, Ltd.

Model: RCMX

Generator Manufacturer: Meidensha Corporation (MEIDEN)

Generator Model: TIC-AFT

Rated Electrical Output: 12,650 kW (12.65 MW)

Manufacturing Year: 2015

Availability: Enquire for availability and commercial terms

Price: Price on request

Technical details are attached in a PDF file.

Contact us at info@heeyas.co.uk

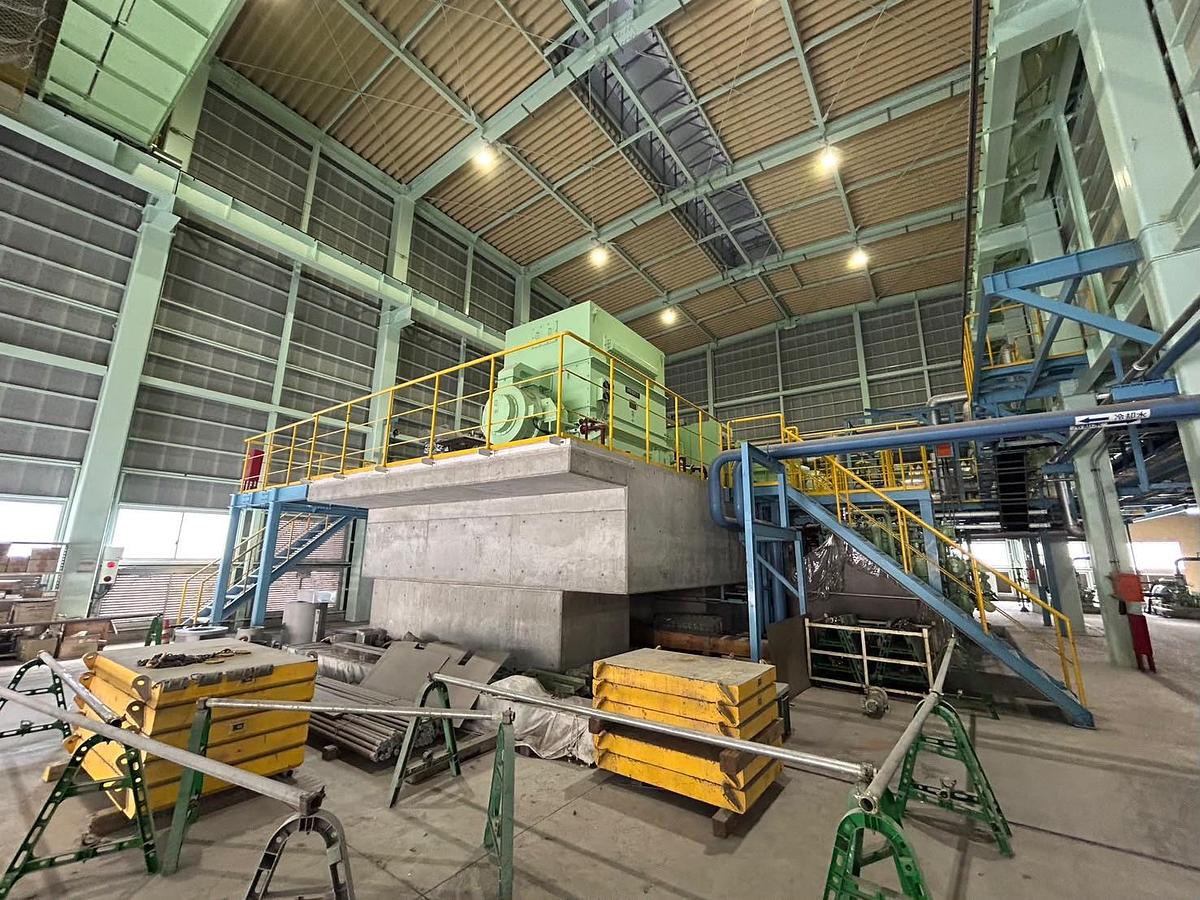

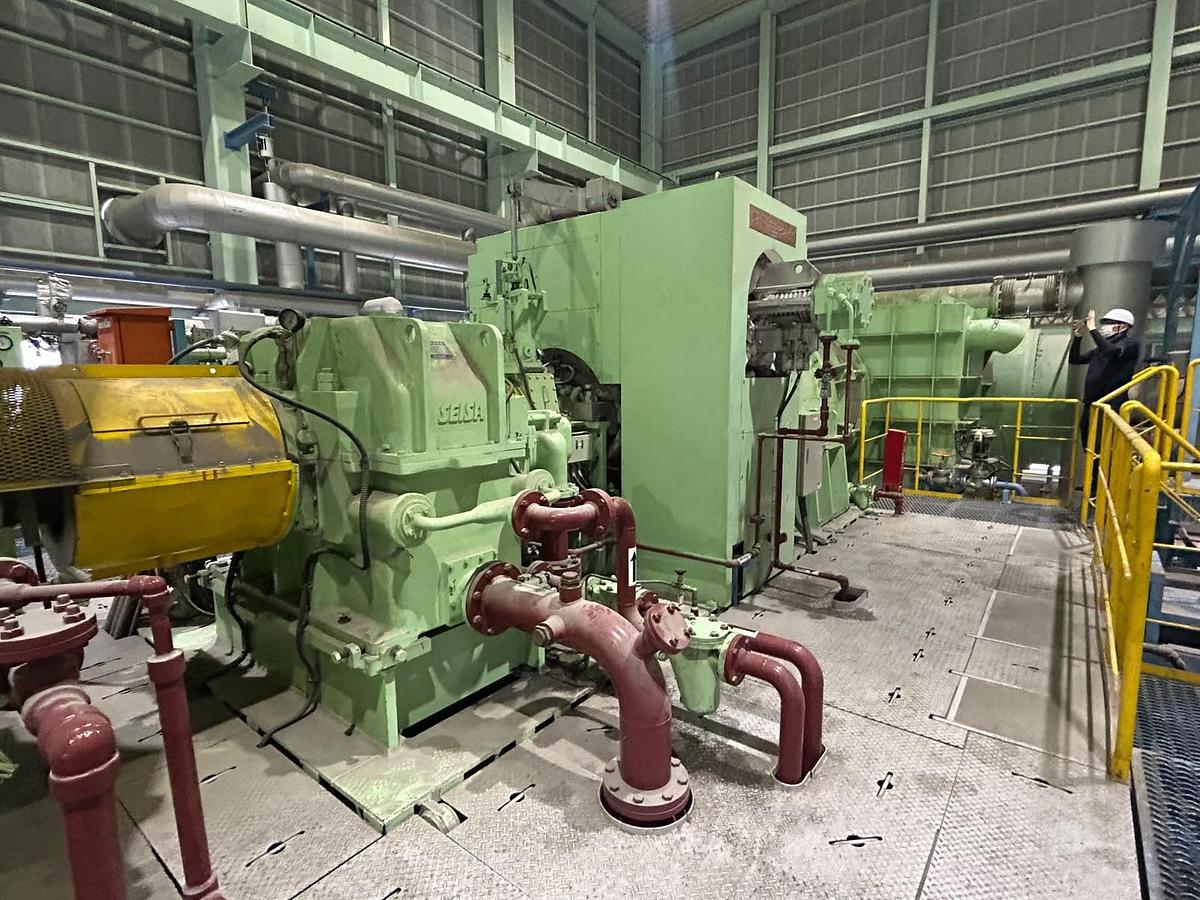

Kawasaki Heavy Industries RCMX steam turbine generator set manufactured in 2015, featuring a Meidensha Corporation TIC-AFT synchronous generator.

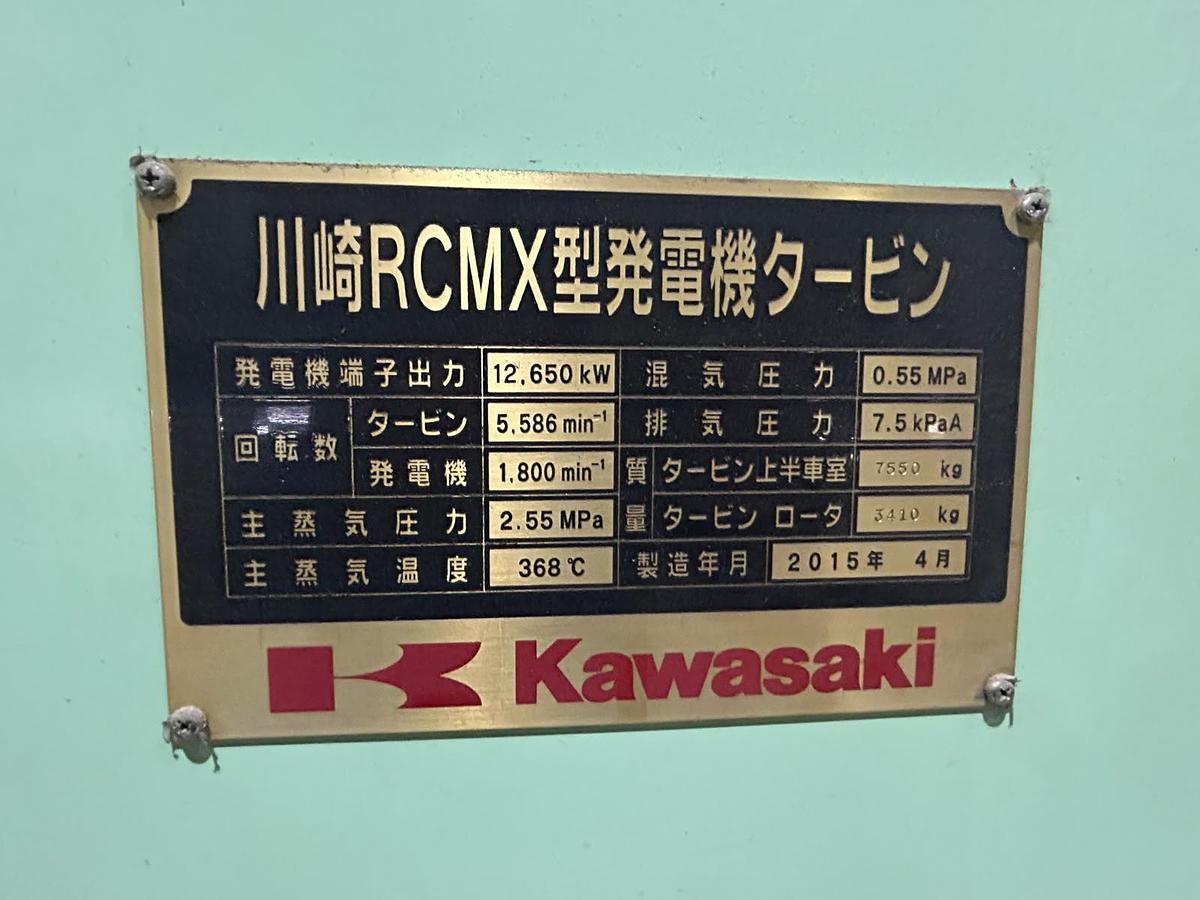

With a stated electrical output of 12.65 MW, this industrial power generation package is designed for steam-driven electricity generation applications. The supplied manufacturer nameplate specifications identify a main steam pressure of 2.55 MPa, a main steam temperature of 368°C and a turbine exhaust pressure of 7.5 kPa absolute.

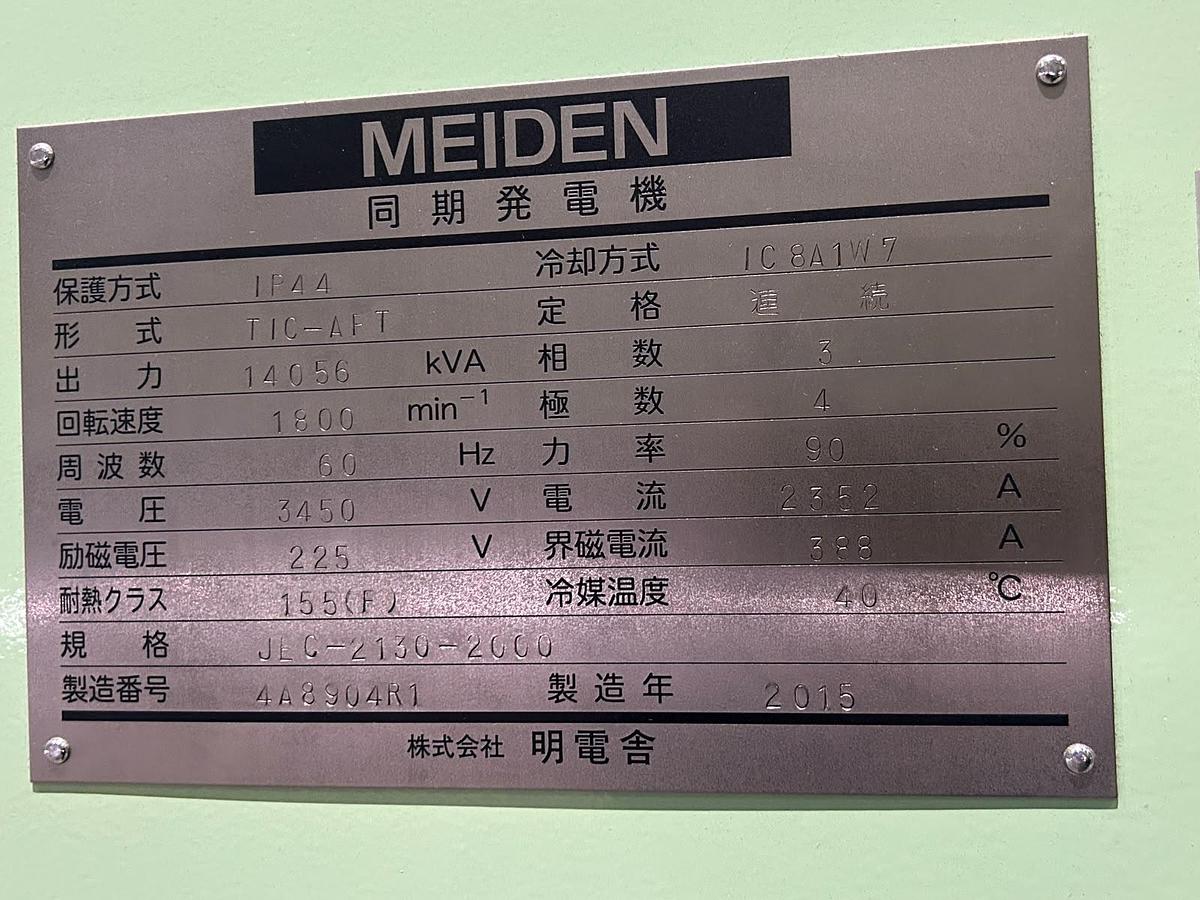

The Meiden synchronous generator is rated at 14,056 kVA, with a nominal voltage of 3,450 V, a frequency of 60 Hz and a rotational speed of 1,800 rpm.
